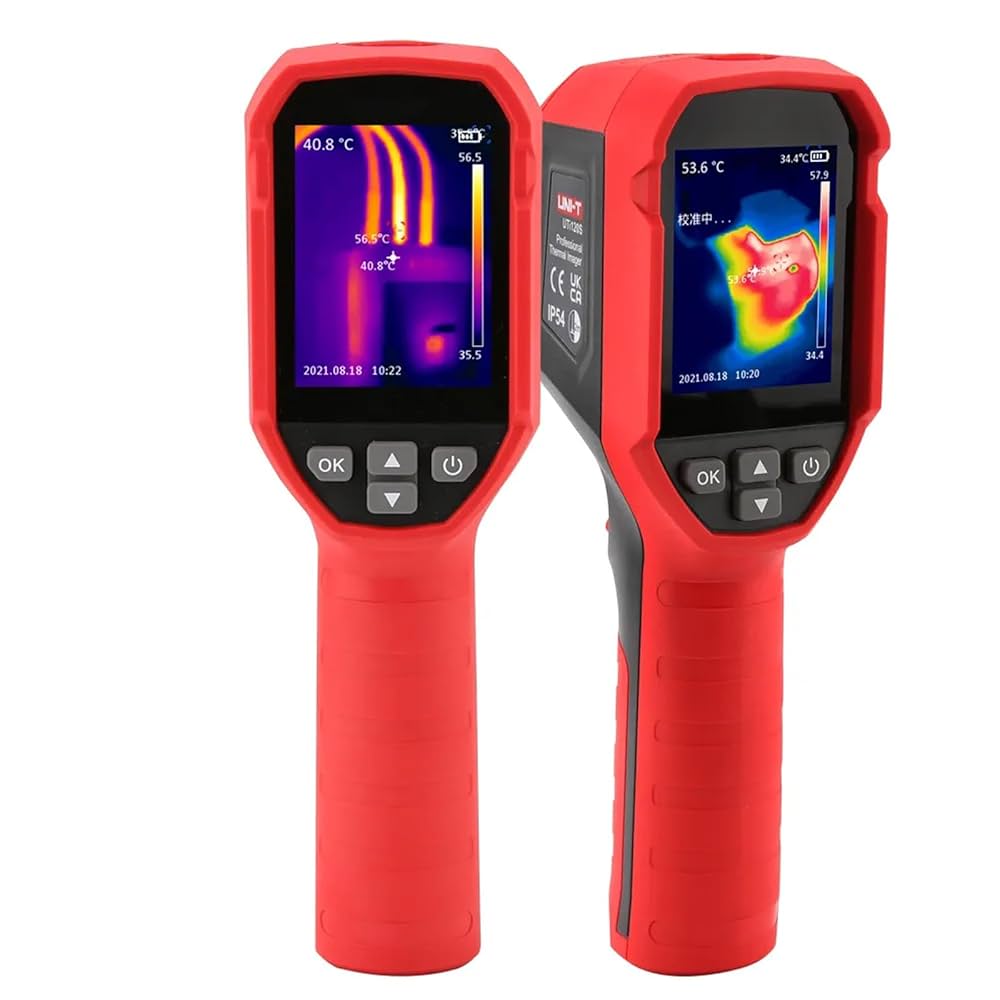

Name: UTI120S CAMERA THERMIQUE -20°C +400°C 120X90 ECRAN 2,4''
SKU: 11661
Availability: OutOfStock

Sensor	Uncooled infrared focal plane thermal imaging sensor
Pixel size	17 pm
Infrared spectrum bandwidth	8-14pm
Thermal imaging pixels	10800 (120’90)
Thermal imaging sensitivity	<60mK
Field of view (FOV)	50°(H) x 38°(V)
Spatial resolution (IFOV)	7.6 mrad
Rate	25Hz
Minimum imaging distance	0.1m
Focus	Focus-free
Temperature range	-20°C – 400°C
Accuracy	±2°C or ±2%, whichever is greater (-10°C -400°C room temperature 25°C)
Measurement units	°C/°F
Resolution	0.1°C
Emissivity	0.95 (default) 0.01 – 0.99
Temperature display	Center point temperature, high/low-temperature tracking
Palettes	lava, rainbow HC, black hot , white hot, iron, Rainbow
Display type	2.4″ TFT LCD
Display resolution	320 x 240

Buttons	4 buttons (power, up, down, OK) 1 trigger
Laser	4(Class 2)
LED Light	4
Temperature alarms	LCD, LED, buzzer
Image storage	Micro SD Card
Image format	BMP
PC analysis software	4
USB communication	Type-C USB
Battery	Li-ion 3.7V/2600mAh 18650
Operating time	Continuous operating time >9h
Charging time	s2.5h
Charging voltage/current	5V 12A
Power on speed	Os (wake up) / 5s (power on)
Auto power off	5min/10min/30min(default)/off
Operating temperature	0 – 50°C ( 32 -140°F )
Storage temperature	-20 – 60°C ( -4 – 140°F )
Operating humidity	< 85%RH ( Operating humidity )
IP rating	IP54
Drop-proof	2m
Product size (LxWxH)	197 x 72 x 60 mm
Product weight	310g
Certificates	CE, UKCA, RoHS
Accessories	User manual, Type-C USB cable, 32GB Micro SD card
